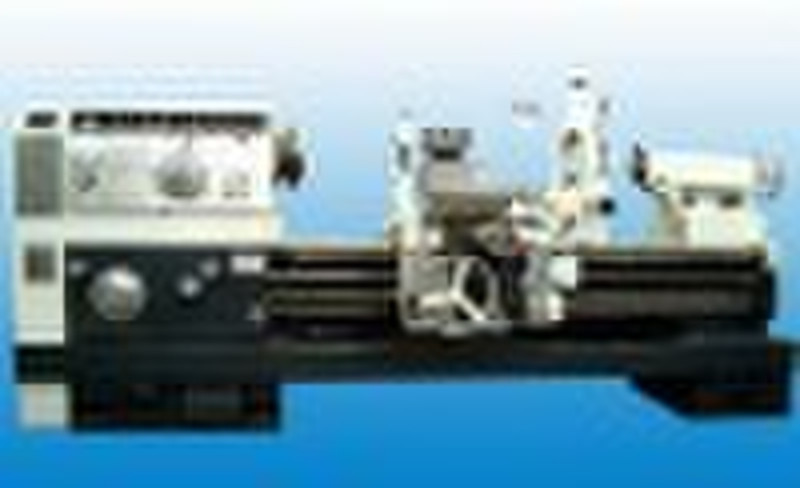

Conventional lathe CW6294B

These lathes are suitable mainly for turning internal and external cylindrical,taper and other swing surfaces as well as various metuic,whitworth,module and diametric pitch threads.They can also be used for broaching oil grooves and keyways.There are also following features: The side wall of bed is constructed with doublerib plates.and the shae of internal ribs is of box type and bevel ribs combination.The rigidity is higher than that of ordinary lathes.The precision is stable.And these lathes can carry out strong force cutting.On apron,there is a device,operated by a single lever,used for rapid traverse of the carriage.Spindle's braking and rotating direction change is controlled by hydraulic system,or by hand operation,all to user's choice.The saddle guide way is gluded by "TSF" soft belt wear resisting materrials.On user's demand,we can equip the lathe with automatic feeding mechanism.The top slide can be used independently for turning of short taper surface.in combination with longitudinal feeding.it can also turn long taper surface. Working ScopeSwing over bedmm
